Shredder maintenance goes far beyond basic housekeeping tasks. It serves as the primary driver behind your facility's Overall Equipment Effectiveness (OEE). When you push machines hard, upkeep dictates your operational profitability. High-volume processing environments leave no room for error. Neglecting daily checks will directly trigger sudden energy spikes. You will face unacceptable throughput drops and risk catastrophic rotor damage. Improper knife clearances compound these issues rapidly.
Evaluating a Single Shaft Shredder requires a clear grasp of its operational realities. This applies whether you are optimizing a current line or buying new equipment. We will explore essential daily inspections and explain exact blade clearance mechanics. You will also learn how to troubleshoot premature wear safely. Finally, we will outline how to assess machine designs for easier long-term maintenance.
Routine daily checks prevent minor wear from escalating into unscheduled downtime and expensive rotor repairs.
Precise knife clearance (typically 0.2mm–0.5mm) is non-negotiable for maintaining output quality and minimizing power consumption.
Blade chipping is often a symptom of improper material selection or unmanaged tramp material, not just normal wear.
When evaluating new equipment, ease of maintenance access and reversible blade designs are critical shortlisting criteria.
Equipment health connects directly to your operational profitability. Industrial reduction machines endure immense stress. Every millimeter of excess blade clearance increases the amperage draw on your motor. Motors working harder consume more electricity. They also generate excess heat. This heat damages internal components over time. Unplanned downtime destroys production schedules quickly. A reactive maintenance approach guarantees profit losses.

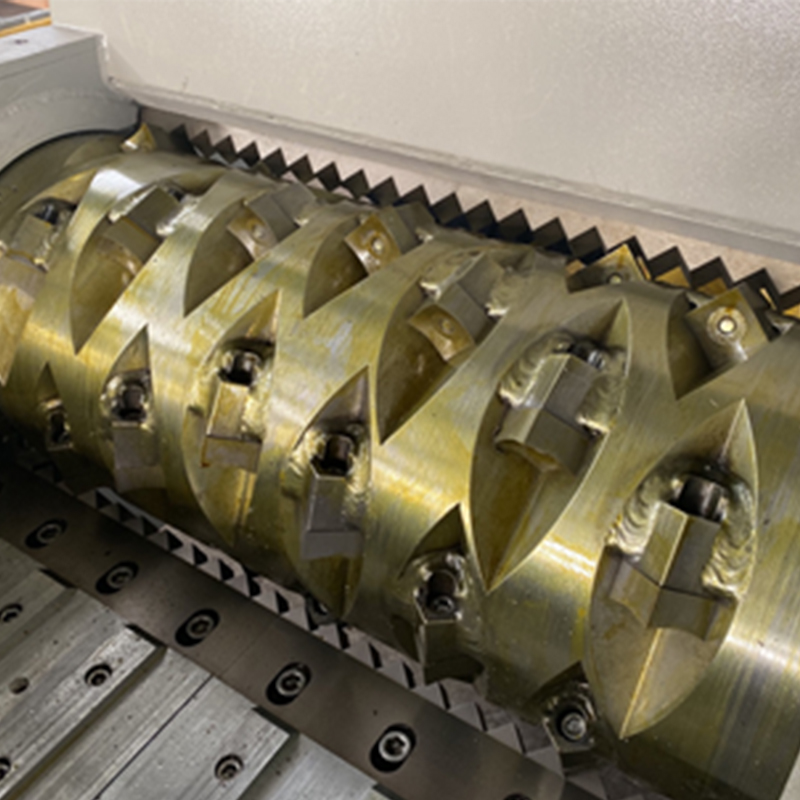

You must understand the high-stress areas inside your machine. A Single Shaft Shredder relies on specific core components. Each component faces unique mechanical vulnerabilities. Rotor knives impact the material directly. Stator knives provide the opposing cutting edge. The hydraulic ram pushes material into the cutting zone. The screen determines the final particle size. Ignoring any of these components leads to system failure.
Core Component | Primary Vulnerability | Financial Impact of Failure |
|---|---|---|
Rotor Knives | Dulling and edge rounding from abrasive materials. | High energy consumption and reduced throughput. |
Stator (Bed) Knives | Loose mounting bolts causing gap expansion. | Material tearing, causing frequent machine jams. |
Hydraulic Ram / Pusher | Fluid degradation or cylinder seal leaks. | Inconsistent feeding, leading to rotor stalling. |
Discharge Screen | Bowing or broken welds from heavy impacts. | Oversized material output and rejected batches. |
A successful maintenance program requires strict success criteria. First, you need predictable replacement cycles for all wear parts. Second, you must maintain stable energy consumption across similar material batches. Finally, your goal is zero unexpected catastrophic failures. Achieving these goals requires disciplined daily action.
Safety always comes first. You must mandate strict Lockout/Tagout (LOTO) procedures before any inspection. Never rely on simple safety switches. Physical energy isolation prevents fatal accidents. Operators must secure the main breaker. They must also bleed off any stored hydraulic pressure.
Visual and physical inspections form your first line of defense. Operators should complete these checks before hitting the start button. Routine builds reliable equipment behavior.
Check the shredding chamber: Look for trapped foreign objects. Tramp metal causes instant blade destruction upon startup. Clear out residual material from the previous shift.
Inspect rotor and stator knives: Look for severe dulling or chipped edges. Check for missing bolts. Tap the hardware lightly to ensure nothing feels loose.
Verify screen integrity: Slide the screen cradle out if possible. Look for bowing in the metal. Check the welds for hairline fractures. Replace screens showing structural weakness.
Lubrication keeps the heavy machinery moving smoothly. You must verify your hydraulic health daily. The hydraulic power pack drives the pusher ram. Check the fluid levels on the reservoir sight glass. Look for milky fluid. Milky fluid indicates water contamination. You must also verify the auto-lubrication systems. These systems feed grease to the rotor bearings. Ensure the grease canisters remain properly filled. Confirm the lines show no signs of pinching or leaking.
Establish a clear operational baseline. Monitor your baseline motor amperage during the first 10 minutes of a run. Modern control panels display this data clearly. Amperage spikes indicate problems. They usually mean dull blades or mechanical binding. Tracking this data helps you catch issues early.
The science of the cutting gap determines your shredding efficiency. A Single Shaft Shredder uses a shearing action. This action happens between the rotary knives and the stationary bed knives. The distance between them must remain incredibly precise.
If the gap becomes too wide, the machine stops cutting cleanly. It begins tearing the material instead. This tearing creates a "stringy" output. It generates massive friction heating. Your energy costs will skyrocket. If the gap becomes too tight, you face extreme risks. Heavy load deflection can push the spinning rotor slightly off-center. This causes a devastating metal-to-metal collision between the knives.
Diagnostic Chart: Knife Clearance Conditions | ||
Gap Condition | Mechanical Symptoms | Energy & Output Impact |
|---|---|---|
Too Wide (>0.8mm) | Material wraps around the rotor. Friction increases. | Amperage spikes up to 40%. Stringy, unacceptable output. |
Optimal (0.2mm - 0.5mm) | Clean shearing action. Smooth rotor rotation. | Stable amperage. Consistent particle size. |
Too Tight (<0.1mm) | Risk of sparks. Knives physically scrape together. | Catastrophic machine failure. Shattered blades. |
Industry standards provide reliable clearance metrics. You should target a gap between 0.2mm and 0.5mm. Your exact target depends on the material. Use tighter gaps for flexible films and soft plastics. They require a precise scissor-like cut. Use slightly looser gaps for rigid woods or dense metals. Rigid materials snap easily under blunt force.
Adjusting bed knives requires strict implementation realities. You cannot guess the gap distance. Operators must use precision feeler gauges. They must measure the gap at multiple points across the rotor length. Rotors can wear unevenly. Securing the knives demands calibrated torque wrenches. Over-tightening bolts stretches the threads. Under-tightening allows the blade to shift during operation. Follow the manufacturer torque specifications strictly.
You must differentiate between normal wear and abnormal damage. Abrasive wear happens gradually. The cutting edge rounds off smoothly over hundreds of hours. Blade chipping represents a different phenomenon. Large chunks of metal break off the blade edge abruptly. Chipping indicates a specific root cause in your process. It is not a sign of normal degradation.
Material selection involves unavoidable trade-offs. You must balance hardness against toughness. Blade metallurgy dictates survival rates.
High Hardness Steels: D2 or DC53 tool steels offer incredible wear resistance. They stay sharp for long periods. However, they lack impact toughness. They will chip easily if they strike solid steel. Use them for clean plastics and paper.
High Toughness Alloys: Custom shock-resistant steels absorb heavy impacts well. They bend slightly rather than shattering. They lose their sharp edge faster than D2 steel. Use them for heavily contaminated streams or construction waste.
Your feed and operating factors often cause chipping. You must assess the hydraulic ram pressure. Overly aggressive pushing forces too much material into the rotor. This can stall the rotor instantly. The sudden deceleration shocks the knives and chips them. Operators should dial back the ram pressure for dense materials.
You must also evaluate your pre-sorting protocols. Unmanaged tramp metal destroys blades quickly. Implement strong magnetic separation before the shredder. Remove non-shreddable objects manually if necessary. Good sorting protects your internal components.
Take actionable advice regarding maintenance schedules. Avoid arbitrary replacement timelines. Do not change blades just because a month has passed. Rely on measurable wear indicators. Use visual inspections daily. Rotate your indexable blades proactively. Turn them to a fresh edge before the current edge rounds off completely. This protects the bolt heads from wearing away.
Buyers evaluating new equipment must look beyond raw throughput numbers. You must evaluate a machine's design based on maintenance operational realities. High theoretical output means nothing if maintenance takes days. Look for specific solution categories that speed up servicing.
Evaluate the rotor access first. How easily can your technicians reach the cutting chamber? Premium machines feature hydraulic access doors. Operators push a button to open the chamber completely. Cheaper machines require manual hoist removal of heavy steel plates. This turns a 10-minute inspection into a four-hour ordeal.
Next, examine the blade design. Rotor knives should be indexable. A 4-way reversible blade provides four distinct cutting edges. You simply unscrew it, rotate it 90 degrees, and reinstall it. This maximizes the blade lifespan before you must purchase complete replacements. Check the mounting hardware design as well. Recessed bolts resist damage from material flow.
Screen swapping represents another critical evaluation dimension. Screens dictate your final product size. You will need to change them frequently. Evaluate the downtime required to drop the screen cradle. Can one person do it safely? Does it require special lifting gear? Fast screen access also helps clear severe material jams quickly.
Take immediate next-step actions during the procurement phase. Ask vendors hard questions. Request their standard maintenance operating procedures (SOPs). Ask them for specific Mean Time To Repair (MTTR) data. A confident manufacturer will provide these documents willingly. Compare these metrics against your internal labor availability.
Rigorous daily checks protect your capital investment. Strict knife clearance tolerances keep your energy costs low. These disciplined habits prevent minor wear from becoming catastrophic failures. Proper blade maintenance dictates the ultimate success of your reduction processes.
Remain skeptical of any vendor claiming "maintenance-free" operation. All heavy mechanical reduction requires disciplined upkeep. Industrial shredding involves immense forces, friction, and abrasion. Equipment survives only through consistent, proactive intervention.
Take time this week to audit your current maintenance SOPs. Observe your operators performing their daily checks. Ensure they use feeler gauges and torque wrenches correctly. If you need new equipment, consult an engineering specialist. Ask them to help you evaluate shredders designed specifically for high-uptime and easy internal access.
A: It varies by throughput and material abrasiveness. Gap checks should be part of weekly preventive maintenance. Adjust the clearance whenever the gap exceeds the manufacturer's maximum tolerance, which is usually greater than 0.8mm.
A: It depends entirely on the application. D2 or DC53 steel is standard for plastics and clean materials due to high hardness. Custom shock-resistant tool steels work better for C&D waste or materials carrying high tramp metal risks.
A: Power spikes are typically caused by dull blades, excessive knife clearance, or screen blinding. You might also be attempting to shred material well beyond the machine's designed bulk density limits. Check your cutting gap first.
