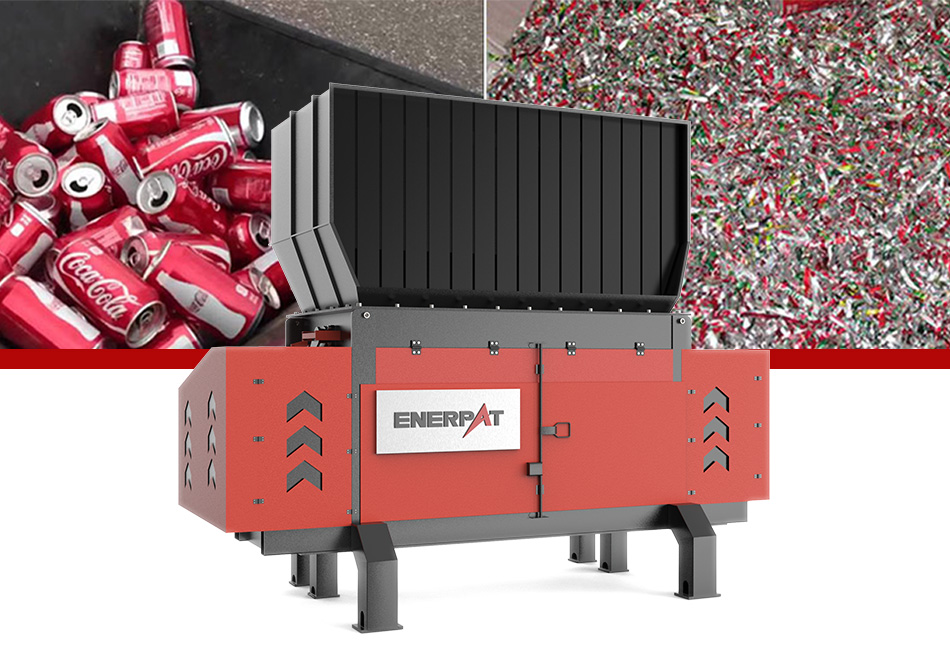

ENERPAT Single Shaft Shredder for Aluminum Cans

ENERPAT Single Shaft Shredder for Aluminum Cans

The ENERPAT Single Shaft Shredder for Aluminum Cans is an intelligent shredding solution designed specifically for aluminum can recycling. It rapidly reduces cans to particles ≤50mm through shear cutting. When paired with the ENERPAT horizontal hammer crusher, it achieves efficient paint removal, impurity separation, and high-purity sorting, delivering aluminum purity above 96.5% and boosting recovery rates by up to 30%.

Key Features:

1. High-Efficiency Shredding System

• German Böhler special steel blades (HRC58-62)

• Hydraulic swing arm pusher with pressure ≥12MPa

• Customizable screen options (15-50mm aperture)

2. Intelligent Control Unit

• Siemens S7-1200 PLC with <0.3% failure rate

• Real-time torque monitoring with ±5Nm accuracy

• Automatic overload protection with <0.8s response time

3. Integrated Application

• With ENERPAT horizontal hammer mill shredder:

• Paint removal efficiency improved by 40% (≥98% surface paint removal)

• Bulk density increased by 35% (1.8–2.2t/m³)

• Sorting line capacity up to 15 tons per hour (TPH)

This system ensures superior shredding performance and optimal aluminum recovery for efficient recycling operations.

Operating Principle

Material Feeding

The swing arm press, driven by a hydraulic cylinder, pushes material toward the cutting shaft.

Material Shredding

Material is broken down by the shearing action between the rotating and fixed blades.

Output Screening

Shredded material is discharged through a screen, with particle size controlled by the screen mesh.

Product Specification Sheet

Material Testing
