Selecting the wrong industrial shredder causes more than minor material jams. Poor choices lead to catastrophic blade failures. They create excessive downtime and inflate operational waste. Machine mismatches destroy plant efficiency. At the decision stage, choosing between single, dual, and four-shaft architectures boils down to two critical variables. First, you must assess input material behavior. Municipal solid waste behaves very differently than uniform PE plastics. Second, you must define your required output fraction size. A mismatch here ruins your overall throughput. This guide bypasses typical marketing claims. We objectively compare the mechanical realities and physical limitations for each shredder type. You will learn how rotor speeds impact processing. You will see how screen configurations alter output limits. We will explore how different blade designs tackle specific materials. We help you match the right machine to your exact material profile. Proper selection ensures smooth daily operations.
Single Shaft: Ideal for achieving a specific, uniform particle size via screens; best for relatively homogeneous, pre-sorted materials.
Double Shaft: The workhorse for primary volume reduction. Operates without screens to deliver high-torque, low-speed shearing for bulky, unpredictable waste (MSW, tires).
Four Shaft: The hybrid solution. Combines the high-torque shearing of a multi-shaft design with the sizing screens of a single shaft, reserved for severe-duty or highly regulated applications (e-waste, secure destruction).
Why are you shredding? You must frame your success criteria early. Primary reduction focuses on saving landfill space. It also lowers transport volumes significantly. This goal requires a vastly different machine than secondary destruction. Secondary destruction prepares materials for granulation. It also readies waste for chemical recycling.
You face a major challenge regarding sizing screens. We call this the screen dilemma. Screens effectively control final particle size. However, they also create primary throughput bottlenecks. Screens easily cause machine jamming if paired improperly. For example, pushing wet materials through a fine screen guarantees immediate clogging.
You must assess several key material variables before proceeding:
Tensile strength and elasticity: PE films stretch immensely. They wrap around high-speed rotors. Rigid plastics simply snap and shatter.
Contamination risk: Unpredictable metals hide constantly inside municipal solid waste. These tramp metals destroy delicate cutting systems.
Moisture content and thermal sensitivity: High-speed friction quickly melts certain plastics. Melted plastic binds the rotor and forces total machine shutdowns.
Understanding these physical properties prevents severe procurement mistakes. Here is a quick reference table comparing material behaviors:
Material Type | Physical Behavior | Primary Shredding Challenge |
|---|---|---|
PE Plastic Films | High elasticity, stretchable | Wrapping around rotors; requires precise shearing |
Rigid PVC / ABS | Brittle, shatters easily | Generates dust; high friction and heat buildup |
Municipal Solid Waste (MSW) | Mixed density, highly unpredictable | Hidden tramp metal contamination; high moisture |
Industrial Tires | Steel-reinforced, high bounce | Resists initial bite; dulls blades rapidly |

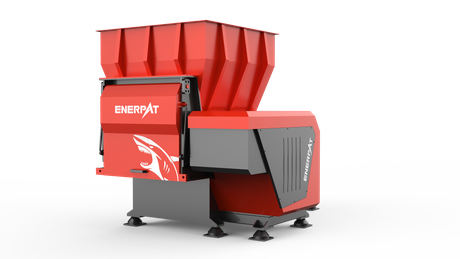

Single shaft machines deliver exceptional precision. They utilize a massive hydraulic pusher ram. This ram forces bulky material against a high-speed rotating shaft. The shaft features multiple small cutting knives bolted onto its surface. Shredded pieces then pass through a sizing screen located beneath the rotor.
Their primary advantage remains consistency. A single shaft guarantees a uniform output fraction in one pass. You get exact particle sizes ready for immediate downstream processing. If your extruder requires 50mm flakes, this machine delivers them accurately.
However, practical implementation carries specific risks. Single shafts jam easily when fed unshreddable items. Solid metal chunks or thick cables cause severe damage. The small knives shatter upon impact against hardened steel. Furthermore, higher rotor speeds generate substantial heat. This thermal energy melts sensitive plastics. If operators fail to manage friction, the melted plastic coats the sizing screen. This coating solidifies and blocks all throughput completely.
Single shaft systems work best for:
Wood waste and pallet recycling
Clean, pre-sorted industrial plastics
Paper and cardboard destruction
Secondary processing lines requiring exact sizing

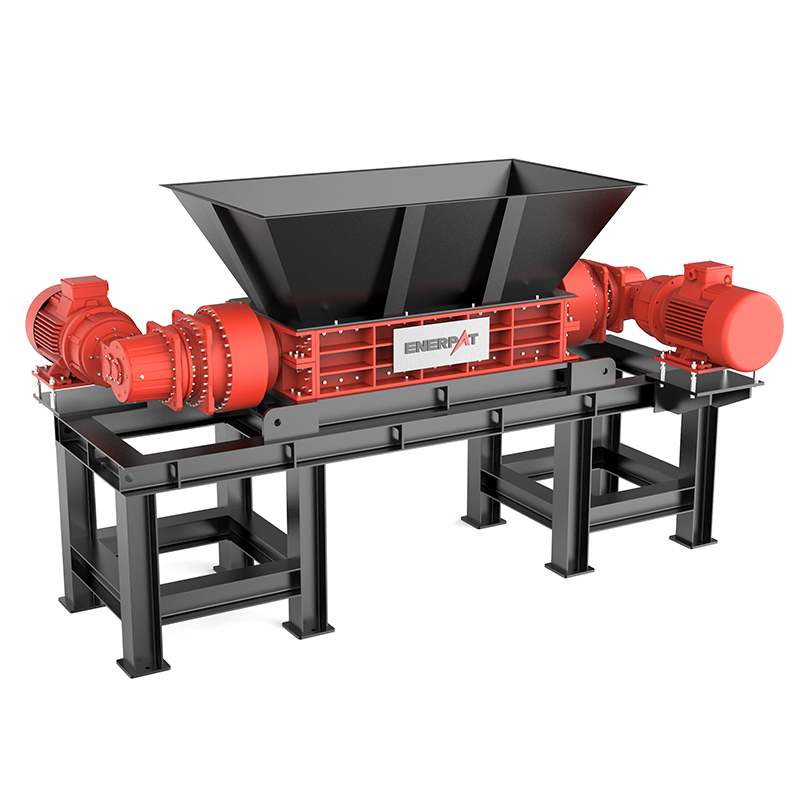

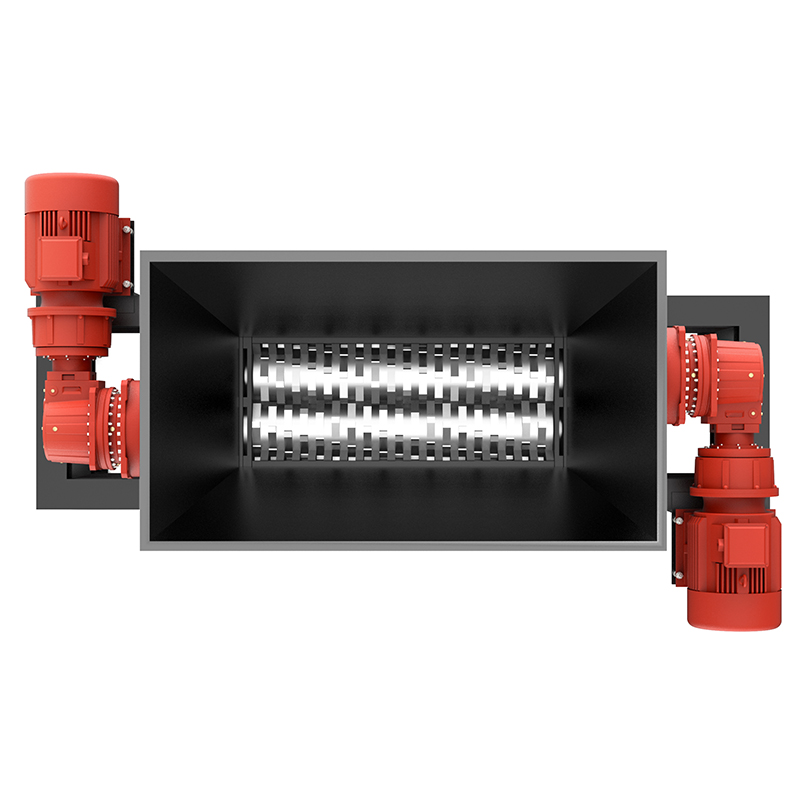

These robust machines feature two counter-rotating shafts. The massive shafts hold large interlocking blades. They aggressively shear and tear material apart. Unlike single-rotor designs, they typically operate without a sizing screen.
The core competency here is unparalleled primary volume reduction. A Double Shaft Shredder bites into massive, bulky items. Its low-speed, high-torque design tackles tough objects easily. Those same bulky items would simply bounce off a high-speed single rotor. The heavy blades grab, puncture, and pull materials downward effortlessly.
You must understand their mechanical realities. Output comes in rough strips rather than precise pieces. The physical blade width determines this strip size. You cannot easily change this output dimension. However, the system is highly resilient against severe contamination. Tramp metal in municipal solid waste rarely destroys these heavy-duty blades. The machine simply crushes small metals or triggers an automatic reverse sequence.
Furthermore, a self-cleaning action occurs naturally. The interlocking cutters scrape against each other continuously. This prevents long, stringy materials from wrapping around the shafts. Textiles and wires fall straight through the central cutting chamber.
They remain the absolute best choice for:
Unsorted Municipal Solid Waste (MSW)
Passenger and commercial tires
Bulk industrial and commercial waste
Primary breakdown operations

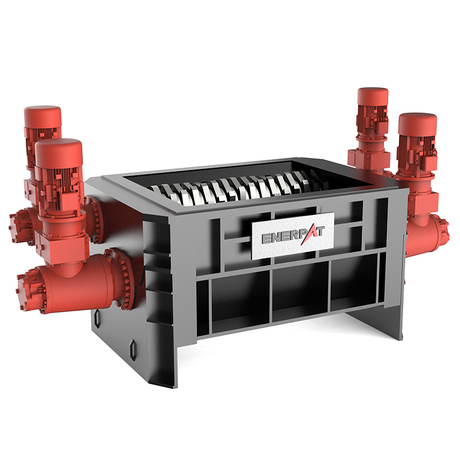

Four shaft machines act as heavy-duty hybrid systems. The complex mechanism involves four interlocking shafts. They forcefully pull material into the central cutting chamber. A rigid sizing screen sits underneath the entire rotor assembly. If shredded pieces remain too large, they recirculate upwards. The secondary sweep blades grab them and shred them again. This cycle continues until particles pass the screen.
The primary advantage is mechanically brilliant. You get the uniform sizing accuracy of a single shaft. Simultaneously, you gain the aggressive, high-torque feeding capability of a Double Shaft Shredder. Bulky items cannot bounce around. The top sweepers force everything into the main cutters.
Implementation brings significant maintenance realities. Four rotors mean double the mechanical components. You must maintain twice as many heavy-duty bearings. You must replace twice as many seals. The blade count increases dramatically. Also, baseline throughput is much lower compared to dual-shaft machines of equal horsepower. The bottom screen fundamentally acts as a physical bottleneck.
These specialized units are strictly best for:
E-waste processing and precious metal separation
Hazardous waste barrel destruction
Secure document and hard drive destruction
Applications requiring precise sizing of resilient materials
Maintenance directly impacts your daily output capacity. You must evaluate consumable lifespan carefully. On a single shaft, operators frequently rotate square cutters. They dull quickly under high speeds and constant friction. In contrast, dual-shaft disks require completely different maintenance. Maintenance teams often hard-face them using specialized welding. This process extends their operational lifespan significantly.
Energy consumption profiles differ drastically between designs. Single shafts require high steady-state power. They must maintain rapid RPMs continuously. Multi-shaft designs rely purely on torque multiplication. They operate slowly but draw massive peak power during tough bite cycles. You must ensure your facility handles these sudden electrical spikes.
Downtime remains a harsh daily reality. You must consider cutting chamber accessibility before purchasing. How many hours does a full rotor swap take? Blade changeouts across the three architectures vary wildly. Single-shaft knives take mere minutes to unbolt and rotate. You can perform this manually. Dual-shaft blade stacks require complex disassemblies. You need dedicated overhead cranes. You also need significant scheduled downtime to rebuild multi-shaft configurations safely.
Never purchase heavy machinery based purely on glossy spec sheets. You must demand a factory material trial. Send your exact waste stream to the manufacturer's testing facility. This physical test proves the machine handles your specific moisture levels. It verifies the cutters handle your material's unique tensile strength.
During the material trial, monitor specific metrics:
Assess the actual sustained throughput, avoiding purely peak bursts.
Measure the physical heat generated inside the cutting chamber.
Inspect the final particle size for strict operational uniformity.
Next, define your overall process flow. Does the machine operate standalone? Perhaps it feeds downstream equipment like optical sorters. Engineers often pair a robust two-shaft machine with a high-speed single-shaft unit. This specific two-stage system maximizes both primary volume reduction and final particle precision.
Finally, conduct strict vendor vetting. Evaluate their localized spare parts inventory. Assess their remote diagnostic monitoring capabilities. Guarantee contractual response times for field service technicians. A perfectly engineered machine becomes useless if critical replacement parts sit weeks away in another country.
There is no universally perfect shredder for every application. Single shafts offer exact precision for secondary processing. A robust double shaft provides rugged primary volume reduction for bulky items. Four-shaft machines deliver highly specialized, severe-duty sizing for complex waste.
You must document your exact material mix thoroughly. Determine your desired throughput in tons per hour. Specify your required output size clearly. Gather these metrics before contacting any manufacturers. Always arrange a documented material trial. Seeing your actual waste processed eliminates theoretical guesswork. Take these precise steps to secure the exact right equipment for your facility.
A: Not reliably. Because they typically lack a sizing screen, the output consists of irregular strips. The physical blade width determines this rough size. If your facility requires strict uniformity, you must use a single or four-shaft machine. Alternatively, you can implement a dedicated two-stage process.
A: Dual shafts cannot guarantee final particle size. If your downstream process requires exact 50mm pieces, rough strips cause catastrophic downstream jams. Granulators and extruders demand uniform feeding. Therefore, a single shaft equipped with a sizing screen becomes absolutely mandatory for precise secondary processing.
A: No. While it offers both shearing and screening, a four-shaft machine presents distinct operational challenges. It yields lower baseline throughput. It demands higher peak energy consumption. It also requires significantly more intense maintenance routines. You should only deploy it when standard dual-shaft or single-shaft machines fail.
A: Single shafts often jam instantly. Their brittle blades shatter upon heavy metal impact. Conversely, double shaft machines run at much lower speeds. They utilize immense torque to crush small tramp metal. They also feature auto-reverse mechanisms to eject uncrushable items, making them superior for unsorted municipal waste.
