MSB-H
ENERPAT

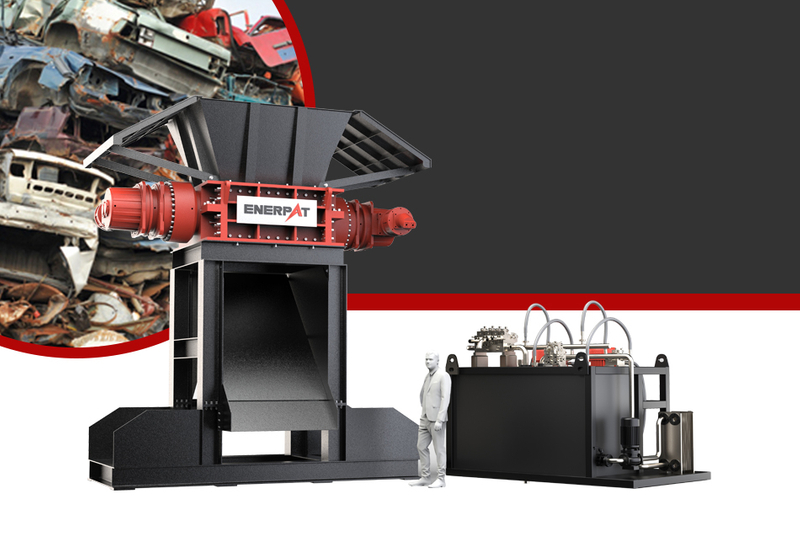

ENERPAT Double Shaft Hydraulic Mega Car Shredder
The ENERPAT double shaft hydraulic mega car shredder revolutionizes scrap car processing by tackling three key pain points: For bulky whole/flattened vehicles, it achieves a 70% volume reduction and increases bulk density to 1.8 tons/m³. With an ultra-strong 3800kN/m² shearing force, it easily crushes high-hardness metal components like engine blocks and drive shafts. Furthermore, its modular blade design and intelligent hydraulic adjustment system reduce single maintenance costs by 60% and energy consumption by 25%.
This versatile equipment handles a wide range of materials, including whole cars (flattened/baled), engines, transmissions, drive shafts, die-cast aluminum, stainless steel sheets, loose scrap steel, and appliance casings. Its capacity ranges from 15-20 tons/hour for cars and 15-35 tons/hour for scrap steel.
As an integrated solution, the ENERPAT scrap car shredder, with its "powerful shredding, low cost, and high compatibility," redefines the efficiency standard for end-of-life vehicle processing.
Operating Principle
Loading
Large waste metal components are hoisted into the shredding chamber.
Crushing
The hydraulic-driven dual shafts cut and shear the materials efficiently.
Discharge
The shredded material falls from the discharge opening and can be collected in a container.
Product Specification Sheet
| MODEL | MSB-H1500 | MSB-H2200 |
| Feeding Hopper Size | 2400MM*2000MM | 3554MM*3050MM |
| Shredding Chamber Size | 1500MM*1300MM | 2200MM*1686MM |
| Shaft Speed | 6-12(rpm) | 3-6(rpm) |
| Blade Thickness | 150MM | 180MM |
| Blade Structure | Combined Blades | Combined Blades |
| Blades Quantity | 10 pcs | 12 pCs |
| Motor Power | 264KW +53KW | 400KW +63KW |
| Shaft Type | Hexagonal | Hexagonal |
| Device Dimensions | 5000×2830×5730 (MM) | 6750×3441×5994 (MM) |
| Device Weight | 32.0 T | 62.5 T |
Material Testing
Six Innovative Designs of the ENERPAT Mega Car Shredder:
1. Hydraulic Power Boost Technology: Pressure feedback system automatically increases torque by 200% upon encountering hard materials, processing a V12 engine in just 45 seconds.
2. Military-Grade Cutting System: Features Hardox 500 wear-resistant steel + tungsten-cobalt alloy coating, reducing wear rate by 57% when shearing aluminum-magnesium alloys.
3. 360° Anti-Jamming Structure: Redundant hydraulic protection + reverse rotation function completely eliminates material blockage and downtime (failure rate <0.3%).
4. Intelligent Energy-Saving Mode: Automatically adjusts rotation speed (8-15rpm) based on material hardness, with energy consumption fluctuation within ±5%.
5. Eco-Compliant Design: Noise level <82dB (EU CE standard), dust concentration <5mg/m³ (GB 16297).
6. Rapid Maintenance Architecture: Modularized cutter shaft assembly and disassembly allow single blade replacement in ≤8 minutes.
Environmental Design: Silent & Compliant Operation
Low Noise (≤75dB): Enclosed structure + vibration-damping base prevent noise complaints.
Dust Control: Optional dust extraction system available to meet environmental emission standards.
Safety Certification: CE and ISO9001 certified, with a 1-year warranty on the entire machine.
