Environmental Impact and Sustainability of Metal Shredding

Table of Contents

• Circular Economy Approach in Metal Shredding Industry

• Energy Efficiency Measures in Metal Shredder Operations

• Waste Minimization Strategies with Metal Shredding

• Compliance with Environmental Regulations in Metal Recycling

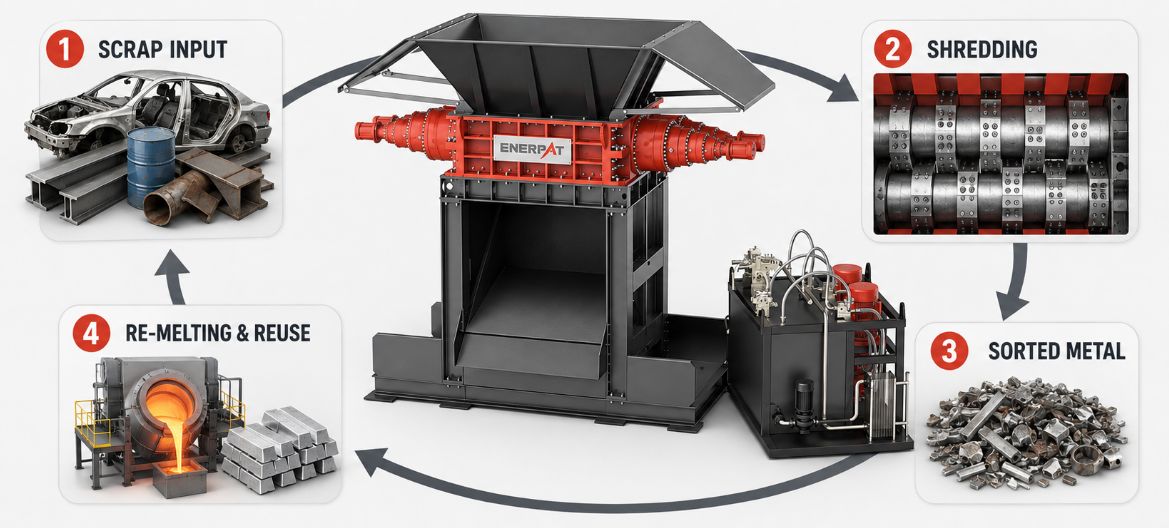

Circular Economy Approach in Metal Shredding Industry

Metal shredding forms the core infrastructure of the circular economy by converting heterogeneous scrap metal streams into refined, high-density metallic feedstock suitable for direct remelting in secondary steelmaking and non-ferrous refining operations.

The transition from a linear take-make-dispose industrial framework to a closed-loop circular economy requires continuous, efficient mechanical processing of end-of-life products. In industrial recycling systems, end-of-life vehicles, white goods, structural steel sections, and manufacturing offcuts contain complex assemblies of iron, aluminum, copper, zinc, polymers, and composite materials. Without physical size reduction and material liberation, these mixed streams cannot be effectively sorted or chemically recycled. High-capacity metal shredders utilize mechanical impact, shearing, and tear forces to reduce large metallic structures into predictable, uniform fractions, releasing trapped non-metallic contaminants and distinct alloy combinations.

From a metallurgical perspective, secondary metal production utilizing shredded scrap drastically decreases scope 1 and scope 2 greenhouse gas emissions compared to primary extraction from iron ore, bauxite, or chalcopyrite. Smelting shredded steel scrap in electric arc furnaces (EAF) requires approximately 75 percent less energy than producing virgin steel via the blast furnace-basic oxygen furnace (BF-BOF) route. Similarly, secondary aluminum recovery driven by processed scrap requires only 5 percent of the energy demanded by primary Hall-Héroult electrolytic reduction. The application of specialized industrial metal shredders ensures that material density, particle size distribution, and bulk purity meet strict electric arc furnace and furnace charging specifications, directly reducing slag volume and thermal loss during smelting.

In addition to energy preservation, metal shredding preserves ecological systems by offsetting the environmental degradation associated with open-pit mining, tailing pond management, and mineral refining. A comprehensive lifecycle assessment demonstrates that every ton of high-purity steel scrap processed through a heavy-duty metal shredder conserves roughly 1.4 tons of iron ore, 0.8 tons of coal, and 0.5 tons of limestone. As European and global manufacturing standards shift toward stringent carbon border adjustment mechanisms and Scope 3 supply chain carbon accounting, the role of heavy shredding infrastructure as a foundational carbon mitigation technology becomes increasingly pronounced.

1. Key Drivers of Closed-Loop Material Recovery

Closed-loop recovery relies on specific mechanical and material factors to maximize secondary resource retention:

1. Structural Material Liberation: Complete physical disconnection of dissimilar metals, coatings, and structural fasteners prior to downstream separation.

2. Volumetric Bulk Density Optimization: Compaction and sizing of loose scrap into high-density shred fractions to maximize transport capacity and furnace thermal efficiency.

3. Contaminant Passivation: Separation of toxic or reactive non-metallic residues, preventing chemical contamination of secondary melt batches.

2. Mechanical Liberation Parameters and Output Characteristics

3. Client-Centric Engineering Principles for European Markets

European operators consistently emphasize high operational availability, strict noise abatement, and standardized modular wear components. When designing heavy shredding equipment for modern recycling hubs, engineering focus centers on rapid screen changing systems, reversible cutter geometries, and integrated hydraulic drive assemblies that can absorb high shock loads without causing mechanical fatigue in the drive train housing. Modular rotor designs allow localized replacement of high-wear hammer pins and liner plates, lowering long-term maintenance costs and reducing total downtime.

Operating Principle: The mechanical degradation of scrap metal inside heavy shredding chambers relies on kinetic energy transfer from high-inertia rotating hammers or high-torque dual shearing shafts against stationary anvil edges. Optimal material liberation occurs when shear stress exceeds the ultimate tensile strength of the target metal, inducing localized brittle fracture along grain boundaries and seam welds.

Energy Efficiency Measures in Metal Shredder Operations

Maximizing energy efficiency in heavy metal shredding operations involves deploying intelligent frequency drives, high-torque low-speed hydraulic motors, optimized hammer dynamics, and adaptive load monitoring controls to reduce kilowatt-hours consumed per ton of processed scrap.

Energy consumption represents one of the largest operational cost variables in modern recycling plant operations. Heavy-duty metal shredders operate under dynamic, non-linear load conditions characterized by extreme torque spikes, variable feed densities, and potential unshreddable material inclusions. Traditional fixed-speed direct-drive electric systems often operate inefficiently during idle cycles or suffer severe thermal and mechanical stresses when processing heavy structural steel sections. To overcome these inefficiencies, modern industrial shredding machinery integrates dynamic power distribution frameworks tailored to real-time mechanical demand.

Variable Frequency Drive (VFD) technology combined with heavy-duty asynchronous or permanent magnet synchronous motors allows shredded metal processing plants to regulate rotor speeds dynamically based on motor current feedback. When processing lightweight tinplate or thin aluminum sheet, the system operates at higher rotational velocities to maximize impact frequency and throughput. Conversely, when heavy structural beams or thick auto axles enter the shredder chamber, the control system reduces rotor speed while increasing motor torque output, preventing motor stall conditions and minimizing peak electrical current surges. Utilizing advanced metal shredding machine technologies with integrated load-sensing hydraulics significantly flattens power demand curves, reducing overall plant peak demand charges.

Rotor design and hammer kinematics also play a decisive role in energy management. The kinetic energy stored in a high-inertia rotor must be efficiently transferred into metal deformation and shearing without generating excessive heat or kinetic energy loss through non-productive friction. Engineers optimize hammer geometry, weight distribution, and grate aperture alignment using Finite Element Analysis (FEA) and discrete element modeling. By ensuring that the clearance between rotating cutters and stationary anvil edges remains within strict tolerance thresholds, power consumption per ton of processed material can be lowered by 12 to 20 percent compared to worn, uncalibrated cutting assemblies.

1. Technical Innovations in Energy Optimization

Modern shredder designs incorporate key technical innovations to lower electrical energy consumption:

1. Hydraulic Direct Drive Systems: High-torque low-speed (HTLS) radial piston motors provide instant stepless speed control, full starting torque, and immediate directional reversal under severe blockage conditions.

2. Kinetic Energy Recovery Systems (KERS): Regenerative variable frequency drives capture back-EMF energy during deceleration cycles and feed clean electrical power back into the facility grid.

3. Automated Smart Feeding Controllers: Electro-hydraulic feed rolls adjust pushing speed dynamically based on main drive motor current, ensuring continuous peak motor load efficiency without overloading the cutting chamber.

2. Drive System Efficiency Comparison and Performance Metrics

3. Real-World Client Focus: Balancing Throughput with Power Supply Limits

In many regional markets, industrial recycling plants face strict electrical grid capacity constraints and high peak-demand tariffs. Clients routinely prioritize shredder configurations that deliver high volumetric reduction without causing grid instability. Integrating energy-efficient heavy duty metal shredders equipped with smart power regulation systems allows scrap yards to operate high-capacity recycling lines within existing power grid allocations, eliminating the need for expensive utility substation upgrades.

Maintenance Tip: Regularly inspect and maintain the precise clearance between the cutting blades or hammer tips and the anvil bar. Excess clearance increases material bending rather than shearing, increasing energy consumption per ton by up to 25 percent and accelerating thermal degradation of hydraulic fluids.

Waste Minimization Strategies with Metal Shredding

Waste minimization in metal shredding is achieved through high-precision material liberation followed by multi-stage downstream sorting systems that extract high-purity ferrous, non-ferrous, and precious metal fractions from shredder residue.

The total environmental and economic value of a metal shredding facility depends heavily on its ability to minimize the volume of Shredder Light Residue (SLR) and Shredder Heavy Residue (SHR) directed to landfills. Historically, shredding operations concentrated predominantly on magnetic recovery of heavy iron and steel scrap, leaving behind complex non-magnetic mixtures containing aluminum, copper, brass, stainless steel, rubber, plastics, foam, and glass. Modern waste minimization strategies treat every fraction of the shredded output as a valuable secondary resource stream, employing mechanical, magnetic, pneumatic, and sensor-based separation technologies.

Following primary mechanical size reduction, shredded material passes beneath high-intensity overband magnetic separators or drum magnets to extract ferrous metals. The remaining non-magnetic fraction, commonly referred to as shredder residue or "Zorba" (non-ferrous shredded scrap containing predominantly aluminum), undergoes multi-stage refining. Eddy Current Separators (ECS) utilize high-frequency rotating magnetic pole systems to induce eddy currents within non-ferrous metallic particles. The resulting repulsive magnetic force deflects conductive metals like aluminum and copper away from non-conductive plastics and organics, achieving metal purity rates exceeding 98 percent.

To capture fine copper wire, ultra-thin metal fragments, and high-grade stainless steel (which is weakly magnetic and often missed by standard drum magnets), advanced facilities integrate optical sorting, X-ray transmission (XRT), and induction sensor sorting systems. XRT technology evaluates material atomic density, enabling precise differentiation between wrought aluminum, cast aluminum, copper alloys, and heavy metals regardless of surface contamination or paint coatings. By transforming previously landfilled shredder fluff into segregated, furnace-ready metal commodities, shredder plant operators minimize environmental waste footprints while maximizing revenue yield per ton of raw scrap ingested.

1. Key Stages in Modern Shredder Downstream Processing

Effective waste minimization requires a structured, multi-stage material processing architecture:

1. Air Classification & Dust Extraction: Removal of light organic fluff, foam, and thin film prior to magnetic separation, preventing mechanical blinding of downstream screens.

2. Primary Magnetic Separation: Extraction of high-purity iron and steel fraction (Shredded Scrap / Heavy Ferrous).

3. Eddy Current Separation: Deflection and recovery of conductive non-ferrous metals (Aluminum, Copper, Brass).

4. Sensor-Based Induction & XRT Sorting: Automated sorting of stainless steel alloys, printed circuit boards (Zurik), and high-density engineering polymers.

2. Downstream Material Recovery Efficiency Metrics

3. Client Insights: Demand for Zero-Landfill Solutions

Industrial customers in highly regulated zones face rising landfill gate fees and stringent diversion targets. Equipment selection is increasingly guided by the purity guarantees of downstream sorting systems. Plants designed with integrated multi-stage sorting capabilities allow scrap processors to market specialized fractions such as purified aluminum twitch and isolated copper wire, converting potential waste disposal liabilities into high-margin product streams.

Maintenance Note: Maintain uniform material feed distribution across the entire width of Eddy Current Separator belts and optical sorting conveyors. Material clumping reduces sensor line-of-sight and prevents clean eddy current deflection, leading to valuable non-ferrous metals being carried over into landfill residue streams.

Compliance with Environmental Regulations in Metal Recycling

Ensuring environmental compliance in metal shredding operations requires advanced engineering controls, including wet shredding suppression systems, explosive gas monitoring, enclosed acoustic baffling, and multi-stage baghouse dust filtration.

Industrial metal recycling operations are governed by rigorous local, national, and international environmental regulations, such as the European Industrial Emissions Directive (IED), United States EPA Clean Air Act standards, and OSHA occupational exposure limits. Heavy shredding processes naturally generate particulate matter (dust), fugitive VOC emissions, high acoustic pressure levels, and potential explosion risks when sealed containers, gas tanks, or lithium-ion batteries unexpectedly enter the shredder chamber. Operating a compliant shredding facility necessitates integrating robust environmental protection systems directly into the shredder machine architecture.

Dust control represents a continuous operational requirement. Uncontrolled metallic and mineral dust poses serious occupational inhalation risks and contributes to off-site particulate pollution. Modern heavy shredders deploy integrated water injection systems directly inside the shredding rotor housing. Controlled micro-atomized water mist binds fine airborne particles directly at the point of impact, increasing particle weight and causing them to drop out of suspension before entering the air stream. The moisture content is precisely calibrated to suppress dust without saturating the material or causing sludge accumulation in downstream magnetic separators.

For dry shredding lines and downstream transport conveyances, high-volume negative pressure aspiration systems route air through heavy-duty pulse-jet baghouse filters and cyclone separators. These systems consistently maintain particulate emissions below strict regulatory thresholds (e.g., < 5 mg/Nm³). Furthermore, to mitigate explosion hazards caused by volatile fuels or compressed gases, shredders are fitted with automated deflagration venting doors, spark detection units, and continuous nitrogen purging or water fogging systems inside the cutter housing. Acoustic emissions are addressed by housing the main shredder body within sound-damped double-wall acoustic enclosures, reducing perimeter noise levels from over 115 dB(A) down to compliant industrial boundary limits below 75 dB(A).

1. Key Environmental Control Technologies in Industrial Shredding

Comprehensive environmental protection relies on multi-layered technical containment measures:

1. In-Chamber Water Injection Systems: Micro-droplet water misting inside the cutting zone suppresses fugitive dust and reduces friction-induced heat generation.

2. Explosion Relief and Suppression Baffling: Heavy duty hydraulic relief doors release pressure waves safely upward during sudden gas ignition events, protecting structural integrity.

3. Enclosed Negative-Pressure Baghouses: High-efficiency PTFE membrane filter bags collect fine particulate matter and heavy metal dust from air extraction systems.

4. Acoustic Insulation Enclosures: Damped structural housings engineered with sound-absorbing rockwool and elastomeric liners isolate structural vibration and airborne noise.

2. Environmental Compliance Operating Parameters and Thresholds

3. Client Perspectives on Regulatory Risk Mitigation

Regulatory non-compliance presents substantial operational risks for scrap metal processors, including potential shut-down orders, heavy fines, and community relations friction. Industrial operators increasingly demand "plug-and-play" shredding equipment that incorporates factory-certified environmental management modules. By choosing equipment engineered with built-in explosion protection and certified dust extraction interfaces, facilities simplify local environmental permitting processes and ensure uninterrupted plant operations.

Maintenance Tip: Check pulse-jet baghouse differential pressure gauges daily. A sudden drop in differential pressure indicates torn filter bags allowing unfiltered dust emissions, while an excessive pressure buildup indicates blinded filter sleeves, reducing air extraction efficiency at the shredder hood.

Conclusion

The environmental impact and sustainability profile of metal shredding affirm its essential position in modern industrial circular economy frameworks. By efficiently fracturing, liberating, and sizing complex scrap metal streams, heavy industrial shredders unlock significant energy savings, reduce global carbon dioxide emissions, and preserve primary mineral reserves. Implementing advanced drive motor technologies, intelligent load sensing controls, and multi-stage downstream separation systems enables recycling operations to maximize metal recovery rates while minimizing landfill residue. Furthermore, integrating engineered dust suppression, explosion relief mechanisms, and sound attenuation systems ensures full compliance with international environmental regulations. As global manufacturing continues its transition toward decarbonized closed-loop supply chains, investing in robust, energy-efficient metal shredding technology remains a primary catalyst for sustainable industrial development.
