Metal Shredding Process: Step-by-Step Recycling, Key Components, Benefits, and Challenges

The industrial metal shredding process is a high power mechanical reduction method that transforms bulky scrap into dense, uniform fragments through continuous tearing, shearing, and crushing operations. Implementing this heavy machinery allows processing facilities to immediately decrease bulk material volume by up to eighty percent while liberating valuable ferrous and non ferrous elements from complex assemblies. By deploying specialized multi shaft and single shaft equipment configurations, modern facilities achieve optimal particle sizes that maximize downstream smelting efficiency and drive higher market valuations for recycled commodities.

To fully optimize a scrap processing line, engineering teams and procurement managers must evaluate the specific mechanical interactions, operational stages, and system parameters that govern high throughput reduction. The following comprehensive technical analysis outlines the fundamental engineering components, the exact material flow path, the operational trade-offs, and future technological transformations shaping the field of industrial resource recovery.

Table of Contents

• What Are the Key Components of Metal Shredders?

• How Does the Step-by-Step Metal Shredding Process Work?

• What Are the Benefits and Challenges of Metal Shredding?

• Conclusion: The Future of Metal Shredding in Recycling

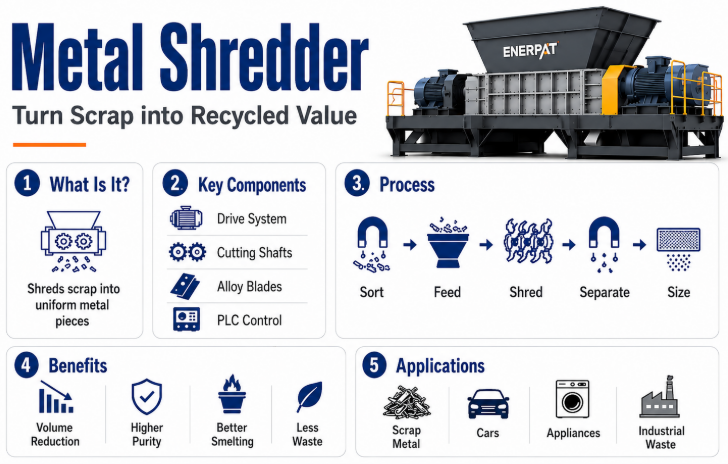

What Are the Key Components of Metal Shredders?

The key components of industrial metal shredders comprise heavy duty drive systems, high torque cutting shafts, specialized alloy blades, robust structural housings, and automated control units engineered to withstand continuous mechanical stress. These individual modules must be precisely integrated to transform high voltage electrical power or hydraulic pressure into the massive shearing forces required to fracture rigid alloys. Understanding the interplay between these core mechanical assets is essential for maintenance optimization and system longevity.

Power Drive Architecture and Hydraulic Systems

At the core of every high throughput machine is the primary drive assembly, which typically features high power electric motors or heavy duty hydraulic drive units. Electric motor systems often utilize frequency converters to modulate rotational velocity and torque dynamically based on real time material resistance. In contrast, hydraulic drive systems offer exceptional shock absorption capabilities, allowing the system to handle sudden, uncrushable objects without sustaining catastrophic gear breakage. Power transmission is managed through heavy duty planetary gearboxes that substantially reduce motor rotational speed while exponentially multiplying output torque to ensure continuous processing of thick walled materials.

Cutting Chambers and Multi Shaft Geometries

The cutting chamber is the structural zone where material fragmentation actually occurs, requiring high structural integrity and thick steel reinforcement. Within this chamber, systems are categorized by shaft configurations to match specific processing needs:

• Dual Shaft Configurations: These utilize two counter rotating shafts turning inward at differential speeds to pull bulky objects through the cutting zone via continuous high torque pulling actions.

• Four Shaft Systems: These incorporate two primary cutting shafts alongside two auxiliary clearing shafts to provide superior material gripping and continuous sizing within a single pass.

• Single Shaft Ram Feeders: These rely on a horizontal hydraulic pusher block that forces the raw scrap consistently against a high speed rotating rotor equipped with indexable cutting inserts.

Advanced Metallurgy of Cutting Blades and Liners

Because the machinery encounters extreme abrasion, the composition of the internal wear parts determines the overall operational lifecycle. Raw cutting discs and knives are typically forged from specialized tool steels or premium alloy grades, such as chromium vanadium or manganese steel, which undergo precise heat treatment protocols to achieve optimal hardness levels. The interior walls of the main cutting chamber are lined with replaceable manganese wear plates that absorb the primary impact of flying scrap pieces, preventing structural degradation of the outer frame.

+-------------------------------------------------------------+
|               INDUSTRIAL CONTROL PANEL (PLC)                |
|  Monitors Current (A), Fluid Pressures, and Shaft Speeds    |
+-------------------------------------------------------------+
                              |
                              v
+-------------------------------------------------------------+
|              POWER TRANSMISSION & GEARBOX                   |
|  Multiplies Torque / Reduces Speed from Primary Motors      |
+-------------------------------------------------------------+
                              |
                              v
+-------------------------------------------------------------+
|                      CUTTING CHAMBER                        |
|  Counter-Rotating Alloy Shafts / High-Wear Manganese Liners |
+-------------------------------------------------------------+

To achieve precise material reduction across varying industrial scrap inputs, selecting the correct machinery grade is paramount. Facilities can evaluate specialized sizing configurations by integrating a high torque Metal Shredder directly into their continuous production lines to achieve uniform particle separation.

How Does the Step-by-Step Metal Shredding Process Work?

The step-by-step metal shredding process works through a continuous cycle of material sorting, automated feeding, mechanical fragmentation within the cutting chamber, magnetic separation, and final particulate classification. Each individual phase must be strictly monitored via centralized programmable logic controllers to prevent chamber overfills and maintain a uniform flow rate across the downstream sorting belts. This sequence transforms heterogeneous bulk scrap into highly refined, furnace ready secondary raw materials.

Phase 1: Material Inspection and Primary Sorting

Before any bulk scrap enters the processing line, a rigorous inspection protocol must be executed to identify and isolate uncrushable hazards or volatile items. Large structural steel beams, thick engine blocks, pressure vessels, and explosive gas cylinders must be manually removed from the feed stream to protect the internal blades from catastrophic fracturing. Crane operators equipped with hydraulic grabs sort the remaining input material to establish a relatively consistent blend of light and medium gauge scrap, preventing sudden torque spikes during initial processing.

Phase 2: Controlled Material Feeding and Input Management

Once inspected, the bulk materials are loaded onto heavy duty steel apron conveyors or into inclined vibratory feeding hoppers designed to handle jagged, heavy objects. The feeding system must regulate the volume of scrap entering the chamber to ensure the machine operates at its optimal electrical current threshold. Advanced systems utilize automated hydraulic tilting hoppers that meter the scrap flow smoothly, minimizing the risk of material bridging where large objects wedge together above the cutting shafts and block downstream material movement.

Phase 3: Shearing, Tearing, and Mechanical Reduction

Upon entering the cutting zone, the scrap meets the counter rotating alloy knives under thousands of newton meters of force. The mechanical action combines three distinct physical mechanisms to reduce the incoming volume:

1. High Force Shearing: The close tolerances between opposing knife edges cleanly slice through thin gauge sheets and aluminum extrusions.

2. Continuous Tearing: Hooked blade profiles hook into bulky components, ripping apart riveted sections, welded frames, and complex multi material assemblies.

3. High Pressure Crushing: The mass of the rotating shafts presses hollow containers, automotive bodies, and industrial drums against internal anvils, instantly flattening and fracturing brittle alloys.

Phase 4: Magnetic Separation and Density Classification

The fragmented material discharges from the bottom of the cutting chamber onto high speed vibrating pan conveyors that spread the particles into a thin, uniform layer. This material stream then passes beneath high intensity overband magnetic separators or rare earth drum magnets, which cleanly lift out ferrous fractions like iron and steel from the non ferrous residue. The remaining non magnetic mixture undergoes further separation using eddy current separators, which utilize rapidly alternating magnetic fields to repel conductive metals such as copper and aluminum away from inert plastics, rubber, and glass.

To process difficult materials like industrial wires, turnings, and bulky aluminum frames, selecting an appropriate processing line is critical. Plant managers often implement a dedicated Metal Shredder setup to guarantee high purity output streams that command a premium from secondary foundries.

What Are the Benefits and Challenges of Metal Shredding?

The benefits and challenges of metal shredding involve significant enhancements in smelting efficiency and volume reduction balanced against high maintenance requirements, continuous component wear, and complex safety hazards. While the process provides vital economic advantages by turning raw waste into high value commodities, engineering teams must implement strict maintenance routines to control operational costs. Balancing these factors determines the overall profitability of large scale recycling operations.

Key Benefits of Industrial Size Reduction

Implementing automated high torque size reduction machinery yields major operational and financial advantages across the entire resource recovery supply chain:

1. Logistical Efficiency: Shredding reduces bulk volume by up to eighty percent, allowing transport trucks and shipping containers to carry maximum weight capacities rather than reaching volumetric limits prematurely.

2. Enhanced Smelting Chemistry: Smaller, uniform fragments melt significantly faster in electric arc furnaces, reducing total energy consumption per melt cycle and increasing overall foundry throughput.

3. High Purity Material Separation: The intensive mechanical fracturing breaks apart complex, multi material assemblies, liberating trapped polymers and distinct alloys for highly targeted downstream sorting.

4. Minimized Landfill Footprint: Diverting manufacturing byproducts and end of life vehicles directly into size reduction systems keeps valuable industrial elements within production loops and out of long term landfills.

Primary Operational Challenges and Wear Factors

Operating heavy mechanical impact machinery introduces several complex engineering and maintenance challenges that require systematic mitigation:

1. Accelerated Component Wear: Continuous contact with hardened alloys, structural steel, and abrasive contaminants causes rapid degradation of blade sharpness and liner thickness, requiring regular surface rebuilding via welding or complete tool replacement.

2. Unshreddable Entrapment: When massive, solid steel items enter the cutting zone accidentally, they can wedge the shafts instantly, causing severe torque reversals that risk cracking gearboxes or bending primary drives if safety clutches fail to disengage.

3. Dust Generation and Environmental Emissions: The violent fracturing of painted metals, oily turnings, and electronic scrap creates fine particulates and airborne dust, requiring localized dust collection hoods and advanced baghouse filtration systems.

Comprehensive Solution Matrix for System Challenges

To address these inherent operational difficulties, modern facilities utilize advanced sensors and robust system engineering. Incorporating a heavy duty Metal Shredder built with integrated automated reverse functionality helps protect internal components by reversing shaft rotation when an uncrushable object causes an electrical current spike.

+--------------------------+     +--------------------------+     +--------------------------+
|     CHALLENGE:           |     |     MITIGATION:          |     |     OPERATIONAL BENEFIT: |
|  Unshreddable Material   | --> | Automated Intelligent    | --> | Eliminates Broken Shafts |
|  Causes Torque Spikes    |     | PLC Reverse Sequences    |     | and Minimizes Down-Time  |
+--------------------------+     +--------------------------+     +--------------------------+

Furthermore, implementing scheduled hardfacing procedures on cutting hooks using specialized impact resistant welding wires extends the continuous operational lifecycle of wear parts by up to forty percent.

Conclusion: The Future of Metal Shredding in Recycling

The future of metal shredding in recycling is defined by the integration of smart sensors, predictive maintenance algorithms, and advanced multi stage separation systems that optimize throughput while reducing energy consumption. As global manufacturing standards demand higher percentages of post consumer recycled content, processing facilities must upgrade from isolated machinery setups to fully connected, smart processing systems. These advancements help operators lower energy costs per ton while meeting strict material purity standards.

Integrating Internet of Things sensors directly into bearing housings and planetary gearboxes allows facilities to monitor real time thermal dynamics, vibration profiles, and acoustic signatures. These parameters are continuously analyzed by predictive maintenance software to identify internal structural fatigue weeks before an actual mechanical breakdown occurs, allowing maintenance teams to schedule service during planned production shutdowns. Additionally, variable speed hydraulic systems and smart electric drives adjust power delivery second by second based on real time chamber resistance, reducing idle energy losses and lowering overall operating costs.

On the downstream classification side, combining traditional magnetic separation with artificial intelligence driven optical sorting and X-ray transmission systems allows lines to isolate specific alloy grades with high precision. This level of purity enables recycling facilities to deliver premium raw materials directly to specialized rolling mills and precision foundries, bypassing several intermediate refining steps. Investing in a robust Metal Shredder infrastructure serves as the essential foundational step for any modern processing plant aiming to scale up production capacities and capitalize on the growing global demand for high grade recycled metals.
