ENERPAT Hammer Mill Scrap Metal Shredder for Car Body, Household Appliances
Industry Challenges – Why a Hammer Mill Matters
The global scrap recycling industry faces three pressing challenges:
1. Complex Waste Streams – From car shells and refrigerators to mixed e-waste and aluminum profiles, materials vary widely in size, hardness, and contamination.
2. High Purity Demand – Foundries and smelters require dense, clean, and uniform scrap to optimize melting efficiency.
3. Operational Efficiency – Processors need shredders that deliver high output without compromising on maintenance or energy costs.
ENERPAT Hammer Mill Scrap Metal Shredders solve these challenges with impact-driven shredding, high-density output, customizable screen sizes, and automated feeding control.
Up to 160 tons/hour processing capacity (Horizontal Series)
Consistent 50–80mm output size for downstream separation (Vertical Series)
Energy-efficient Siemens motors reduce current shock and extend equipment lifespan

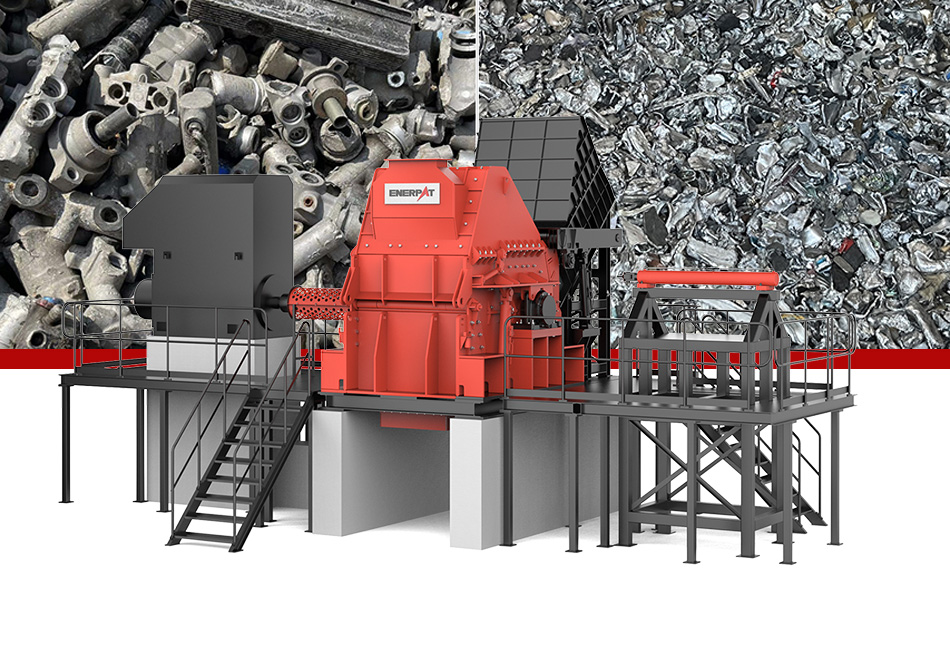

Horizontal Hammer Mill (MSA-H Series)
 | Ideal for: Car bodies, oil drums, cast aluminum, extrusions, UBCs (used beverage cans), light scrap steel. Key Advantages: 1. Heavy-Duty Construction – Extra-thick wear-resistant steel chamber with quick-open design for easy maintenance. 2. Rotating Hammer Technology – 360° free-rotating alloy-steel hammers for maximum impact and extended wear life. 3. Customizable Screens – Heavy-duty removable sieves control output size precisely. 4. German Siemens Motor + PLC Control – Continuous torque, overload protection, smart feed regulation. 5. Scalable Models – From 2–3 t/h to 160 t/h, with main motor power up to 4410 kW. |

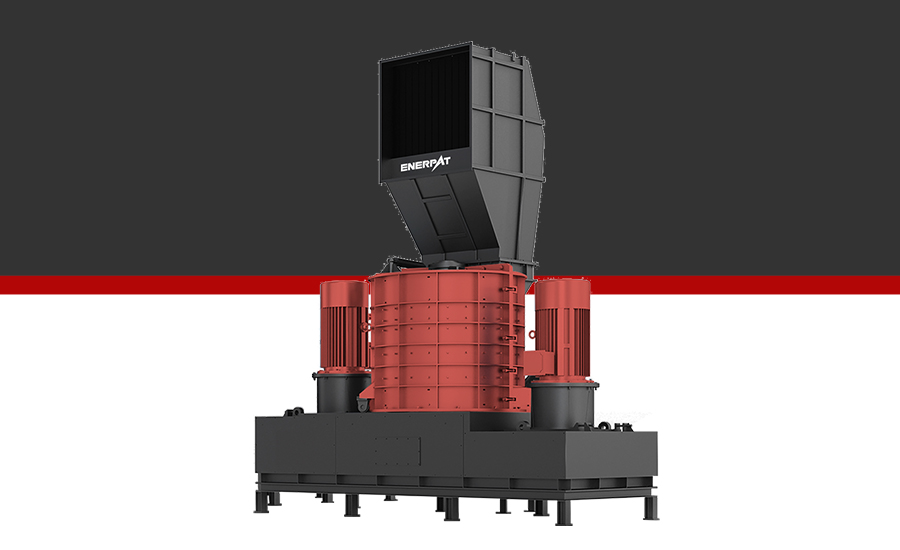

Vertical Hammer Mill (MSE-V Series)
 | Ideal for: Small household appliances, IT scrap, aluminum profiles, and electronic waste. Key Advantages: 1. High-Strength Vertical Chamber – Welded design with top-mounted hammers for downward impact shredding. 2. Rolling Knife Compression – Dual action of hammer impact + roller grinding cleans surfaces and separates materials. 3. High Manganese Steel Hammers – Heat-treated, long-life wear resistance. 4. SKF/FAG Bearings & Hydraulic Coupler – Smooth startup, shock absorption, and extended bearing life. 5. Compact & Efficient – Produces uniform 50–80 mm output, easy for sorting lines. |
Product Specification Sheet
MSA-H Series | MSE-H800 | MSE-H1000 | MSE-H1300 | MSE-H1800 | MSE-H2000 | MSE-H2600 |
| Main Power | 110/132KW | 220KW | 355KW | 560KW | 750-1120KW | 1500-4410KW |
| Rotor Speed | 480rpm | 480rpm | 594rpm | 594rpm | 594rpm | 594rpm |
| Shaft Length | 762mm | 1016mm | 1270mm | 1778mm | 2032mm | 2641mm |
| Fedding Width | 760mm | 1000mm | 1200mm | 1700mm | 2000mm | 2600mm |
| Motor Connecting | V-Ruber Belt | V-Ruber Belt | Universal Joint | Universal Joint | Universal Joint | Universal Joint |
| Number of Hammer | 10pcs | 10pcs | 10pcs | 10pcs | 10pcs | 10pcs |
| Output(Steel) | 2-3t/h | 8-10t/h | 8-12t/h | 10-15t/h | 15-30t/h | 30-160t/h |
MSE-V Series | Main Motor Power (kW) | Speed (rpm) | Number of Rolling Knives (pcs) | Equipment Dimensions (mm) | Equipment Weight (t) |
V1500 | 132 | 670 | 36 | 3294×780×5014 | 14 |
Material Testing
Why ENERPAT?
With over 80 years of engineering in metal recycling, ENERPAT provides not just machinery, but complete solutions backed by European standards, CE certification, and thousands of installations worldwide. Whether you’re processing automotive scrap at scale or precision-cleaning e-waste, ENERPAT Hammer Mill Scrap Metal Shredders deliver productivity, reliability, and profitability.
