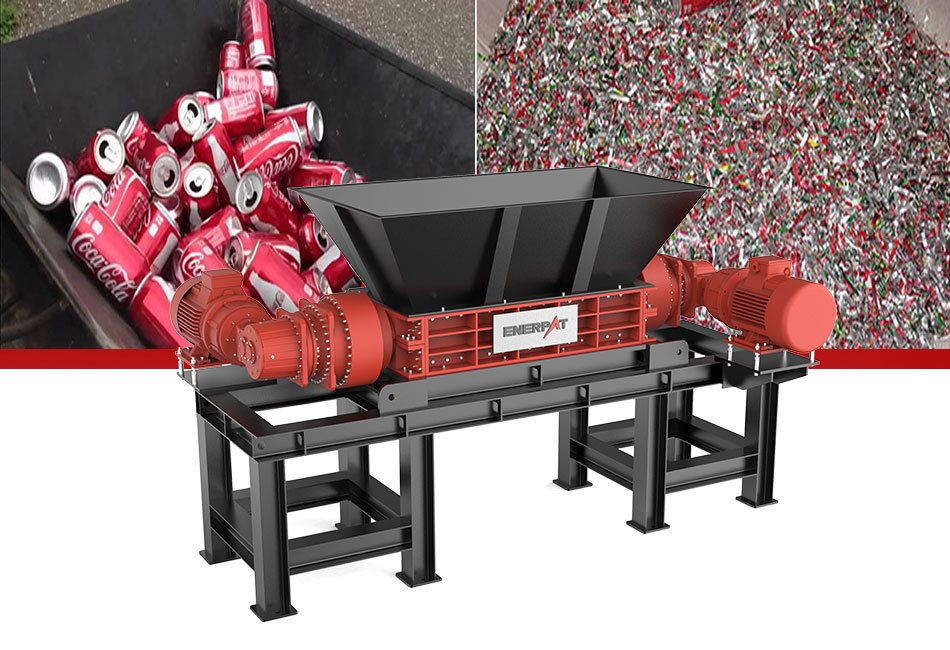

ENERPAT MSB-E Soda Can Shredder
ENERPAT's Two Shaft Soda Can Shredder is a versatile and powerful machine designed to handle a wide range of can recycling needs. By utilizing the mutual shearing and tearing action of two counter-rotating blades, it efficiently breaks down cans into manageable pieces, facilitating further recycling processes. The shredder's low-speed, high-torque design ensures high efficiency and productivity, while its low noise and energy consumption make it an environmentally friendly choice.
Detailed Data & Features
Model Range: ENERPAT offers 10 different models with motor powers ranging from 7.5KW to 560KW and crushing chamber lengths from 300mm to 2600mm, ensuring a perfect fit for any operation size.
Bearings: Equipped with German FAG/SKF bearings, the shredder is built to withstand heavy loads and impact, ensuring long-term durability and reliability.
Maintenance: The upper and lower split-type bearing housing design simplifies maintenance tasks, reducing downtime and costs.
Performance: The Two Shaft Soda Can achieves high crushing efficiency, with the ability to process cans at rates of up to 10 tons per hour in large-scale operations, as demonstrated in a waste treatment center case study.
Operating Principle
EFeeding
Materials are conveyed to the crushing chamber of the double shaft shredder.
Shredding
The materials are shredded using the principle of cutting and tearing between two counter-rotating knives.
Discharge
The materials are crushed into strips or chunks, achieving the coarse crushing effect.
Product Specification Sheet
| Model | MSB-E300 | MSB-E500 |
| Machine Size(L*W*H) | 1500x1300x1850 | 1600x1300x1850 |
| Shredding Chamber Length(mm) | 300 | 500 |
| Discharge Height(mm) | 600 | 600 |
| Blade Diameter(mm) | φ170-300 | φ270-300 |
| Speed(pcs) | 13-18.5 | 9-32 |
| Blade Material | German | German |
| Blade Thickness(mm) | 20 | 20/30 |
| Motor Power(kw) | 7.5/11 | 15/22/30 |
| Hopper Volume(L) | 480 | 550 |
| Machine Weight(kg) | Around1370 | Around1470 |
| Model | MSB-E800 | MSB-E1200 |
| Machine Size(L*W*H) | 2700x1300x1850 | 3600x2000x2200 |
| Shredding Chamber Length(mm) | 800 | 1200 |
| Discharge Height(mm) | 640 | 600 |
| Blade Diameter(mm) | φ270-450 | φ320-520 |
| Speed(pcs) | 10-32 | 7.5-32 |
| Blade Material | German | German |
| Blade Thickness(mm) | 20/30 | 30/40 |
| Motor Power(kw) | 15/30/60 | 44/90/150 |
| Hopper Volume(L) | 750 | 1360 |
| Machine Weight(kg) | Around 2300 | 6400 |
| Model | MSB-E1600 | MSB-E2200 |
| Machine Size(L*W*H) | 5200x2210x2600 | 8000x4000x5000 |
| Shredding Chamber Length(mm) | 1600 | 2200 |
| Discharge Height(mm) | 1400 | 1400 |
| Blade Diameter(mm) | φ450-800 | φ450-850 |
| Speed(pcs) | 5.5-14.5 | 5.5-14.5 |
| Blade Material | German | German |
| Blade Thickness(mm) | 50/75 | 50/75/100 |
| Motor Power(kw) | 90 | 220 |
| Hopper Volume(L) | 3000 | 6000 |
| Machine Weight(kg) | 29400 | 45000 |
Material Testing
Industry Problems & Applications
In the can recycling industry, one of the main challenges is efficiently breaking down cans into smaller, more manageable pieces for further processing. ENERPAT's Two Shaft Soda Can Shredder addresses this challenge by providing a high-performance solution that can handle a variety of can types, including soda cans, aluminum cans, beer cans, tin cans, and beverage cans. The shredder is widely used in waste treatment centers, recycling facilities, and other industries where can recycling is a critical part of the operation.
