Tackling Waste Tire & Rubber Industry Challenges with ENERPAT
Background Issues in the Waste Tire & Rubber Industry:
The rapid growth of the automotive industry has led to a surge in waste tires and rubber products, posing environmental and logistical challenges. Efficient and eco-friendly disposal of these materials is crucial for sustainable waste management.

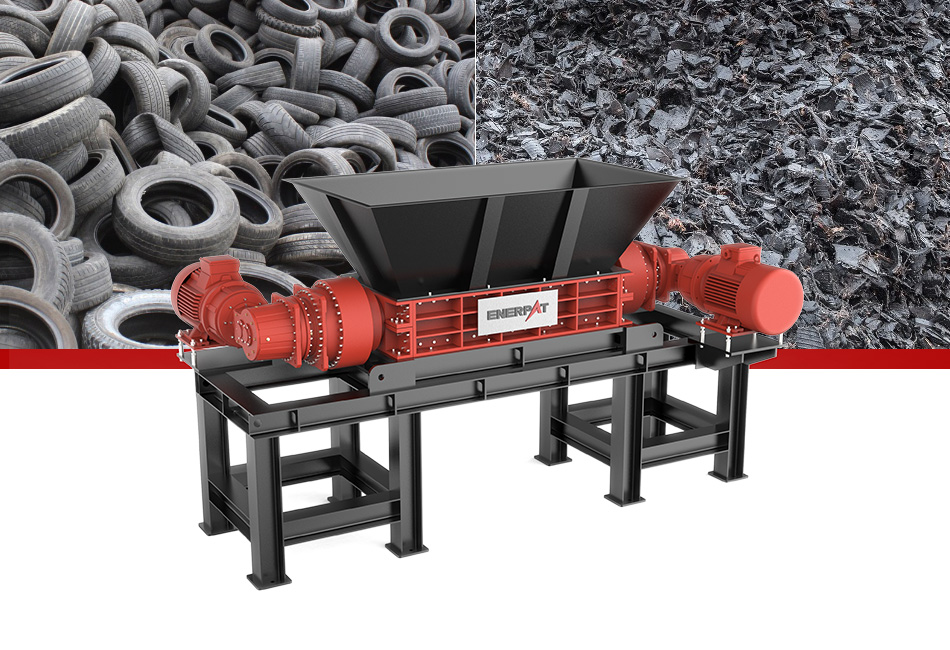

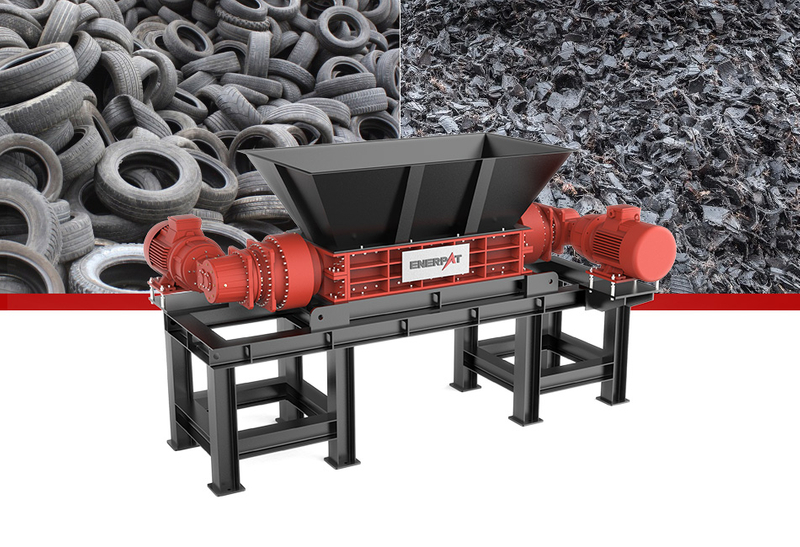

Features of ENERPAT Dual-Shaft Rubber Shredder (Tire Shredder):
Low-Speed, High-Torque Cutting Design:
Enhances shredding efficiency and maximizes throughput, enabling rapid processing of tires and rubber into strips or chunks for further recycling.
Robust Construction for Longevity:
Equipped with German FAG/SKF bearings, the shredder withstands heavy loads and impacts, ensuring durability and reducing downtime. The split-type bearing housing design simplifies maintenance, lowering operational costs.
Comprehensive Model Range:
Available in 10 models with motor power ranging from 7.5 kW to 560 kW and shredding chamber lengths from 300 mm to 2600 mm, the ENERPAT rubber shredder can be tailored to meet specific customer requirements.
Energy-Efficient & Cost-Effective:
Offers low noise, low energy consumption, and high output, helping customers save on operational costs and increase profitability.
EU CE Certification:
Guarantees top-notch quality and compliance with international standards, providing customers with peace of mind.
Operating Principle
EFeeding
Materials are conveyed to the crushing chamber of the double shaft shredder.
Shredding
The materials are shredded using the principle of cutting and tearing between two counter-rotating knives.
Discharge
The materials are crushed into strips or chunks, achieving the coarse crushing effect.
Product Specification Sheet
| Model | MSB-E300 | MSB-E500 |
| Machine Size(L*W*H) | 1500x1300x1850 | 1600x1300x1850 |
| Shredding Chamber Length(mm) | 300 | 500 |
| Discharge Height(mm) | 600 | 600 |
| Blade Diameter(mm) | φ170-300 | φ270-300 |
| Speed(pcs) | 13-18.5 | 9-32 |
| Blade Material | German | German |
| Blade Thickness(mm) | 20 | 20/30 |
| Motor Power(kw) | 7.5/11 | 15/22/30 |
| Hopper Volume(L) | 480 | 550 |
| Machine Weight(kg) | Around1370 | Around1470 |
| Model | MSB-E800 | MSB-E1200 |
| Machine Size(L*W*H) | 2700x1300x1850 | 3600x2000x2200 |
| Shredding Chamber Length(mm) | 800 | 1200 |
| Discharge Height(mm) | 640 | 600 |
| Blade Diameter(mm) | φ270-450 | φ320-520 |
| Speed(pcs) | 10-32 | 7.5-32 |
| Blade Material | German | German |
| Blade Thickness(mm) | 20/30 | 30/40 |
| Motor Power(kw) | 15/30/60 | 44/90/150 |
| Hopper Volume(L) | 750 | 1360 |
| Machine Weight(kg) | Around 2300 | 6400 |
| Model | MSB-E1600 | MSB-E2200 |
| Machine Size(L*W*H) | 5200x2210x2600 | 8000x4000x5000 |
| Shredding Chamber Length(mm) | 1600 | 2200 |
| Discharge Height(mm) | 1400 | 1400 |
| Blade Diameter(mm) | φ450-800 | φ450-850 |
| Speed(pcs) | 5.5-14.5 | 5.5-14.5 |
| Blade Material | German | German |
| Blade Thickness(mm) | 50/75 | 50/75/100 |
| Motor Power(kw) | 90 | 220 |
| Hopper Volume(L) | 3000 | 6000 |
| Machine Weight(kg) | 29400 | 45000 |
Material Testing
Case Studies:
Solid Waste Treatment Center: Processed mattresses, sofas, and other large waste at a rate of 10 tons per hour.
Waste Disposal Center: Handled sofas, furniture, and other bulky items at 6 tons per hour.
Bayer & ENERPAT Custom Solution: Managed cardboard boxes, woven bags, and other lightweight waste at 1 ton per hour.
