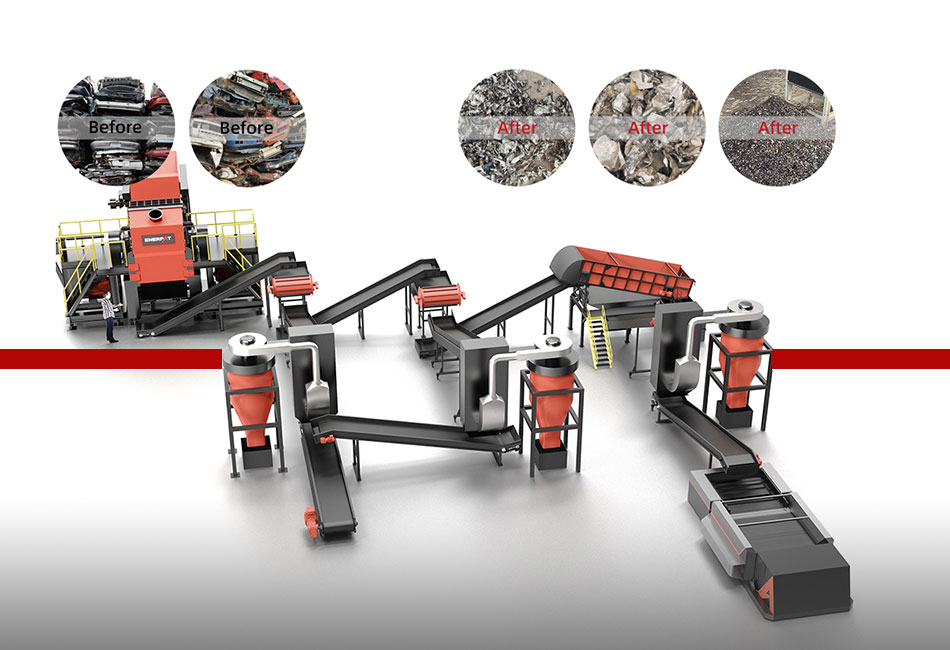

ENERPAT Car Shredder Cleaning and Drying system
Background
As the global automotive fleet expands, efficient recycling becomes crucial for environmental sustainability and resource conservation. Enerpat steps in with its state-of-the-art Car Shredder Cleaning and Drying System, designed to transform automotive waste into high-value recyclable materials.
Enerpat's Solution Strength
High Capacity, Low Energy: Our system processes 15-20 tons/hour of tough metals like car shells and 30-40 tons/hour of loose metal scraps, all while consuming significantly less power (960Kw total) compared to competitors' 4500Kw setups.
Enhanced Purity & Value: Through a dual-stage crushing process, our system ensures finer, purer material output, elevating the overall recycling value. The addition of cleaning and drying functions further enhances the purity of the recycled metal, making it more suitable for high-quality remanufacturing.

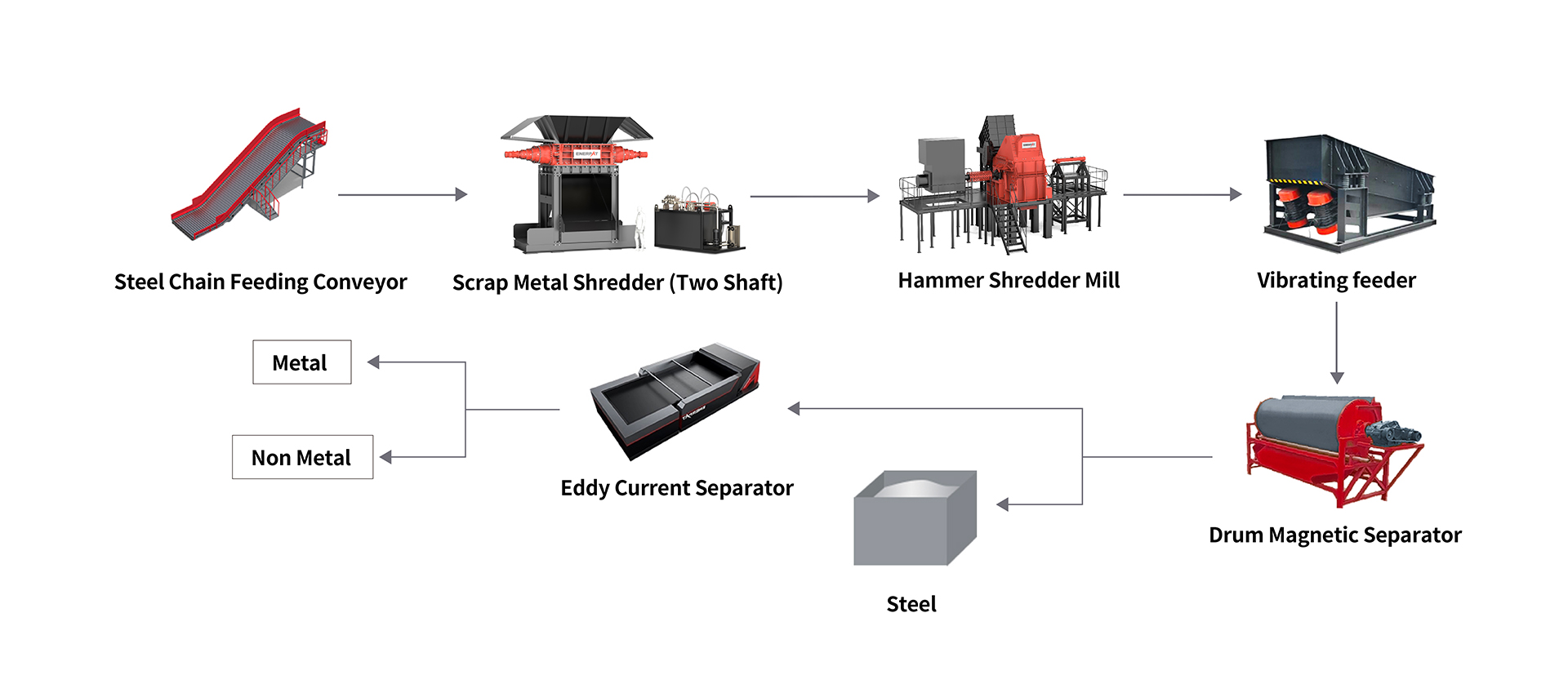

Two-Stage Shredding System
 | Pre-Shredding - Hydraulic Dual-Shaft Steel Shredder Initial Tear-Down: The hydraulic dual-shaft steel shredder initiates the recycling journey by pre-shredding car shells into manageable pieces, preparing them for further processing. |
 | Fine Shredding - Horizontal Hammer Mill Shredder Metal Disintegration & Purification: The horizontal hammer shredder takes over, breaking down metals into ball-shaped fragments while separating impurities. This stage is crucial for achieving high-purity metal output. |
Material Testing
Scrap Car
Scrap Car Shell
Scrap Metal
Separation & Cleaning
Magnetic Separation: A drum magnetic separator extracts iron metals, leaving non-ferrous materials and plastics for further processing.
Eddy Current Separation: The remaining materials pass through an eddy current separator, effectively isolating non-ferrous metals from plastics.
Cleaning & Drying: Non-ferrous metals are then subjected to a high-pressure water wash in a cleaning pool to remove oil and dirt, followed by a drying process, ensuring they are ready for reuse with maximum purity.
Dust Control System
Our integrated dust suppression system guarantees a clean, pollution-free recycling environment, adhering to the highest environmental standards.
